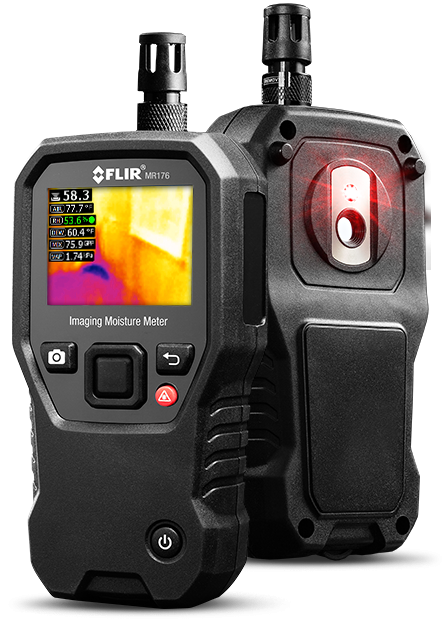

FLIR MR176 METER / HYGROMETER

IGM™ Moisture Meter with Replaceable Hygrometer

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.

Get more flexibility from your moisture meter

• Investigate Issues and Troubleshoot Quickly

  IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation

• Minimize Downtime

  The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime.

• Convenient, Flexible, Easy to Operate

  Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software.

  Specifications

  Overview

  Laser Orientation

  Single laser pointer to center of thermal image

  Packaging Size

  33 cm x 14 cm x 12 cm (13 in. x 5.5 in. x 4.75 in.)

  Sensitivity

  <150mK

  Typical Usage

  4 work weeks

  Warranty

  2 Yr Product, 10 Yr Thermal Detector

  Compliance & Certifications

  Agency Approvals

  CE, FCC Class B, RCM

  Environmental

  Air Temperature

  Range 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)

  Dew Point

  Range -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)

  Mixing Ratio

  Range 0 to 560GPP (0.0 to 80.0 g/kg) / Basic Accuracy ±2GPP (0.25 g/kg)

  Relative Humidity

  Range 0 to 100% / Basic Accuracy 2.5%RH

  Vapor Pressure

  Range 0.0 to 12.0kPa / Basic Accuracy ±0.05kPa

  Imaging & Optical

  Continuous Run Time

  18 hours max

  Display Type

  QVGA (320 x 240 pixel) 2.3" color TFT graphical display

  Gallery

  17540

  Image Update Speed Frequency

  9Hz

  Imaging Detector

  FLIR Lepton microbolometer

  Spectral Response

  8 to 14µm

  Thermal image minimum focus distance

  4" (10cm)

  Thermal image palettes

  Iron, Rainbow, Ice, Greyscale

  Field of View [W x H]

  51° × 38°

  Thermal Image Resolution [W x H]

  4800 pixels (80 × 60)
